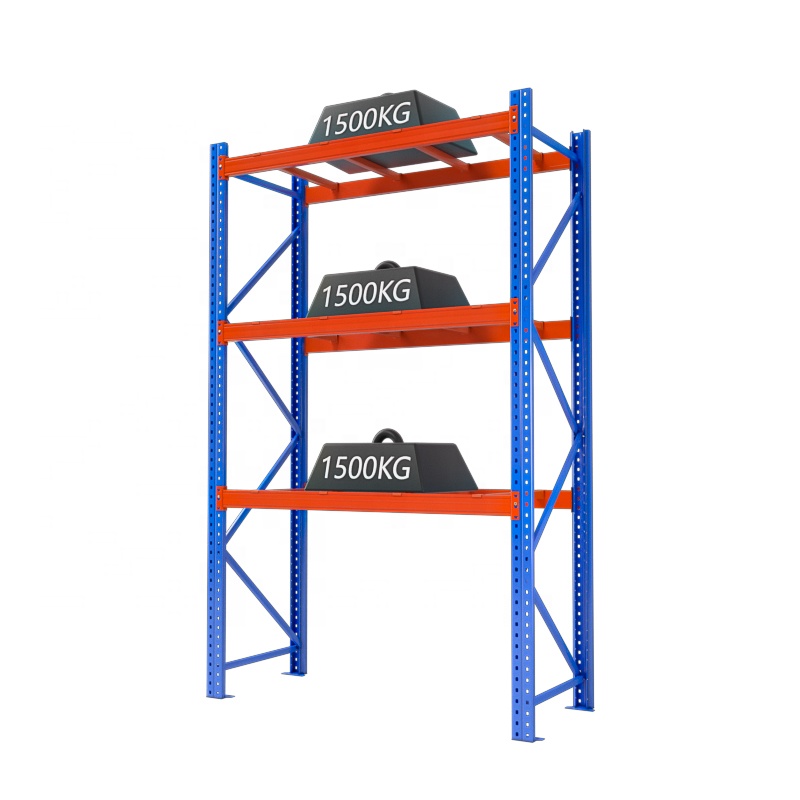

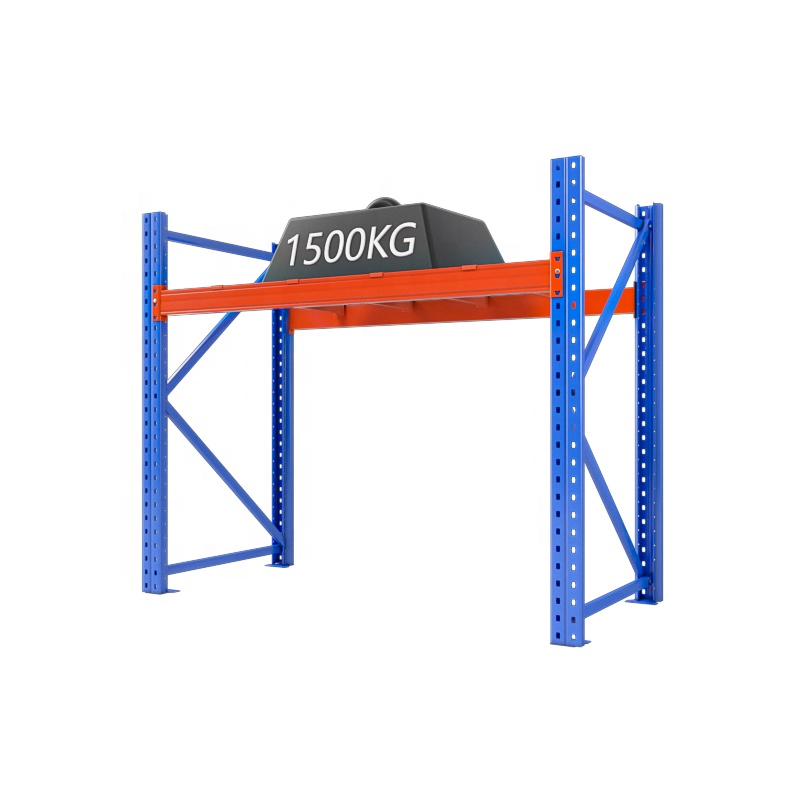

Shibang Storage Rack
1 / 5
| Name | Inside Diameter (cm) | Dead-weight (kg) | Loading Capacity (kg) | Remarks (mm) |

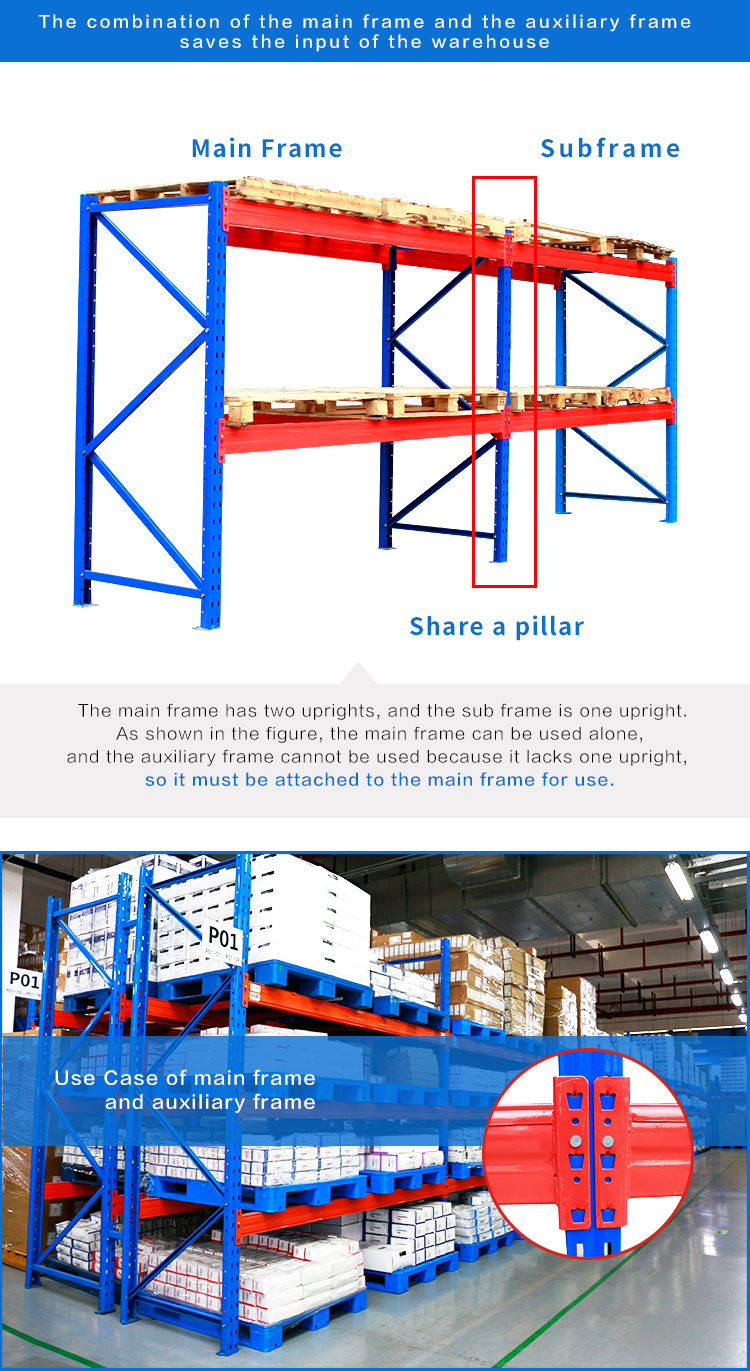

| Body-frame | 250*100*350=2 layers | 97.1 | 1350kg/layer | Upright 60*80*2.0 Beam 50*80*1.5 |
| Sub-frame | 71.6 | |||
| Body-frame | 250*100*200=1 layer | 57.2 | 1800kg/layer | Upright 60*80*1.5 Beam 50*100*1.5 |
| Sub-frame | 41.6 | |||
| Body-frame | 250*100*350=2 layers | 108 | Upright 60*80*2.0 Beam 50*100*1.5 | |
| Sub-frame | 80 | |||
| Body-frame | 270*100*350=2 layers | 118 | Upright 60*80*2.0 Beam 50*120*1.5 | |
| Sub-frame | 89 | |||
| Body-frame | 300*100*350=2 layers | 128.2 | ||
| Sub-frame | 97.3 | |||
| Body-frame | 250*100*350=2 layers | 117.8 | 2500kg/layer | Upright 80*60*2.0 Beam 50*120*1.5 |
| Sub-frame | 86.9 | |||
| Body-frame | 270*100*350=2 layers | 128.1 | Upright 80*60*2.0 Beam 50*140*1.5 | |
| Sub-frame | 97.2 | |||

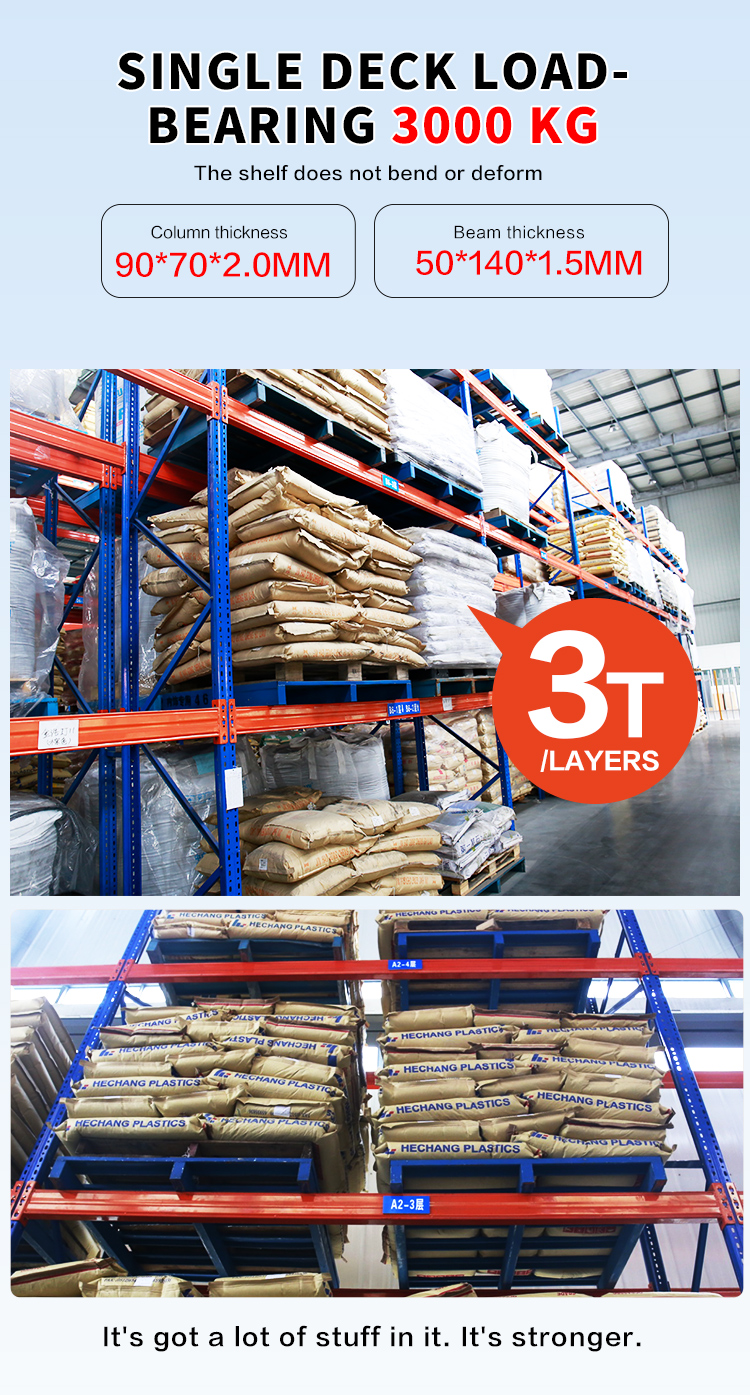

| Body-frame | 250*100*350=2 layers | 130 | 3000kg/layer | Upright 90*70*2.0 Beam 50*140*1.5 |
| Sub-frame | 95.8 | |||
| Body-frame | 270*100*350=2 layers | 134.4 | ||
| Sub-frame | 100.2 |
