| Size | Number of layers | Loading capacity | Color | Materials | Estimated Price |
|---|---|---|---|---|---|

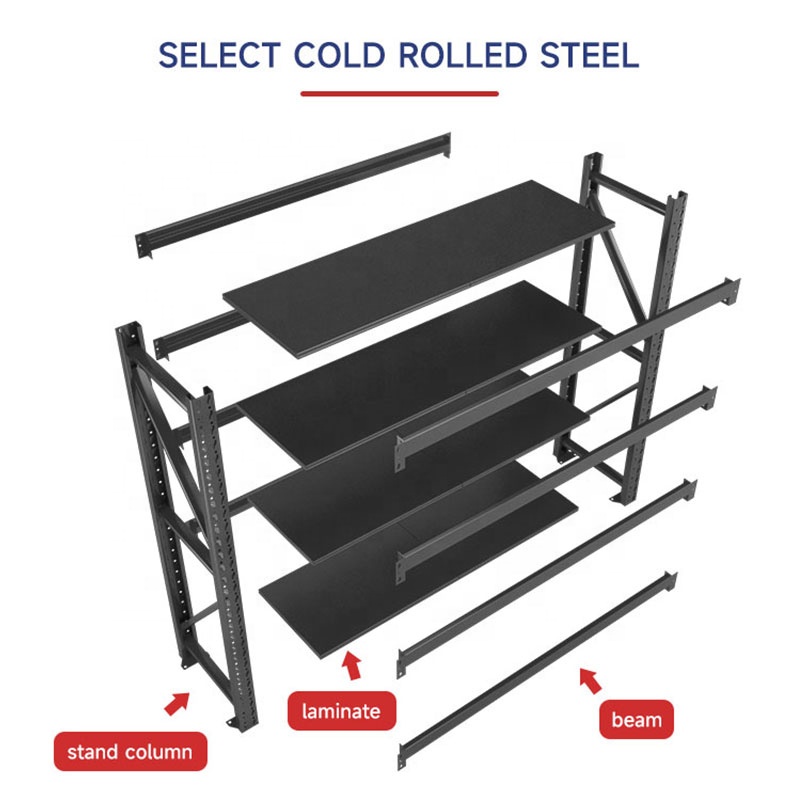

| L100*D40*H200 | 3 layer / 4 layer / 5 layer / custom | 120Kg / layer | Blue, white, grey, frosted black, custom | Column: 30*50*0.5 C steel Beam: 30*50*0.45 P steel Laminate: 0.3 (0.23 bar) |
- |
| L100*D50*H200 | 45 to 55 USD/Set | ||||
| L120*D40*H200 | 47 to 57 USD/Set | ||||
| L120*D50*H200 | 50 to 60 USD/Set | ||||
| L150*D40*H200 | 52 to 62 USD/Set | ||||
| L150*D50*H200 | 55 to 65 USD/Set | ||||
| L180*D40*H200 | 58 to 68 USD/Set | ||||
| L180*D50*H200 | 66 to 76 USD/Set |
| Size (Heavy Option) | Number of layers | Loading capacity | Color | Materials |
|---|---|---|---|---|
| L100*D40*H200 | 3 layer / 4 layer / 5 layer / custom | 180KG / layer | Blue, white, grey, frosted black, custom | Column: 30*50*0.7 C steel Beam: 30*50*0.6 P steel Laminate: 0.4 (0.3 bar) |
| L100*D50*H200 | ||||
| L120*D40*H200 | ||||
| L120*D50*H200 | ||||
| L120*D60*H200 | ||||
| L150*D40*H200 | ||||
| L150*D50*H200 | ||||
| L150*D60*H200 | ||||
| L180*D60*H200 | ||||
| L200*D40*H200 | ||||
| L200*D50*H200 | ||||
| L200*D60*H200 |
| The New Light Duty Racking | |||
|---|---|---|---|
| loading capacity | Shelf thickness | Upright thickness | Beam thickness |
| 120kg / layer | 0.32mm thick cold rolled steel sheet | 30*50*0.7mm C steel | 30*50*0.6mm P steel |
| The New Medium Duty Racking | |||
| 120kg / layer | 0.32mm thick cold rolled steel sheet | 30*50*0.7mm C steel | 30*50*0.6mm P steel |
| Size (cm) | Body-frame weight (kg) | Sub-frame weight (kg) | loading capacity (kg) |
|---|---|---|---|

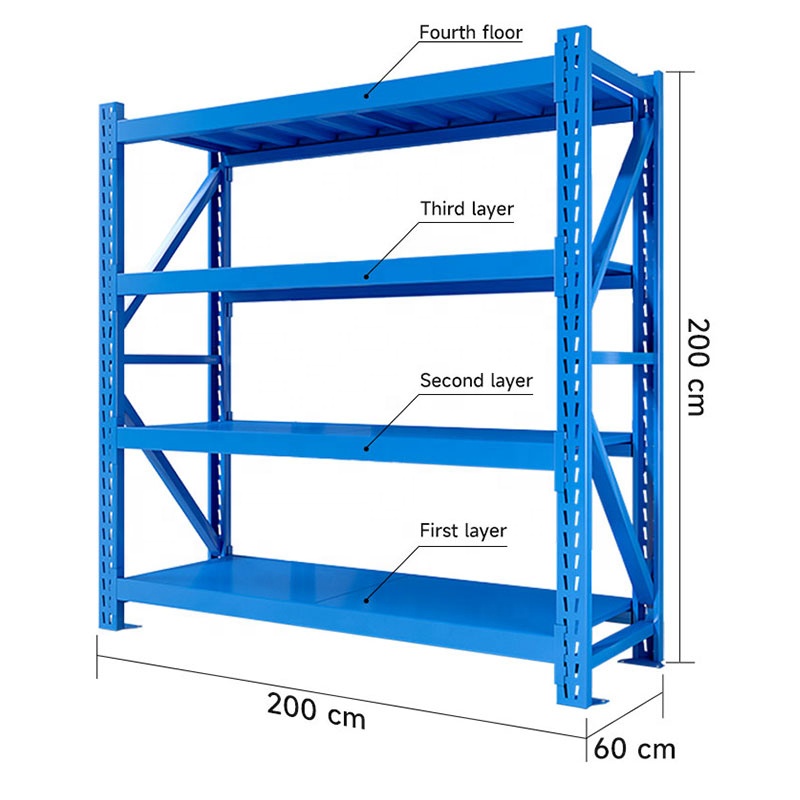

| Thicken 200*60*200=4 layers | 44±0.5 | 40±0.5 | 180kg/layer |
| Thicken 200*50*200=4 layers | 41±0.5 | 37±0.5 | 180kg/layer |
| Thicken 200*40*200=4 layers | 39±0.5 | 35±0.5 | 180kg/layer |
| Thicken 180*60*200=4 layers | 41±0.5 | 37±0.5 | 180kg/layer |
| Thicken 150*60*200=4 layers | 37±0.5 | 32±0.5 | 180kg/layer |
| Thicken 150*50*200=4 layers | 33±0.5 | 28±0.5 | 180kg/layer |
| Thicken 150*40*200=4 layers | 30±0.5 | 26±0.5 | 180kg/layer |
| Thicken 120*60*200=4 layers | 30±0.5 | 26±0.5 | 180kg/layer |
| Thicken 120*50*200=4 layers | 27±0.5 | 23±0.5 | 180kg/layer |
| Thicken 120*40*200=4 layers | 25±0.5 | 21±0.5 | 180kg/layer |
| Thicken 100*50*200=4 layers | 25±0.5 | 21±0.5 | 180kg/layer |
| Thicken 100*40*200=4 layers | 23±0.5 | 19±0.5 | 180kg/layer |
| The New 200*50*200=4 layers | 33±0.5 | 29±0.5 | 120kg/layer |
| The New 150*50*200=4 layers | 27±0.5 | 23±0.5 | 120kg/layer |
| The New 150*40*200=4 layers | 25±0.5 | 21±0.5 | 120kg/layer |
| The New 120*50*200=4 layers | 24±0.5 | 20±0.5 | 120kg/layer |
| The New 120*40*200=4 layers | 21±0.5 | 18±0.5 | 120kg/layer |
| The New Medium 200*60*200=4 layers | 49±0.5 | 42±0.5 | 240kg/layer |
| The New Medium 200*50*200=4 layers | 44±0.5 | 38±0.5 | 240kg/layer |
| The New Medium 150*60*200=4 layers | 41±0.5 | 34±0.5 | 240kg/layer |
| The New Medium 150*50*200=4 layers | 37±0.5 | 30±0.5 | 240kg/layer |
1) Payment terms: T/T 30% deposit after order confirmed, 70% balance paid against bill of lading. L/C O/A also available.
2) Lead time: Normally in 20-25 days after deposit received.
3) Sample policy: Samples are always available for each model. Samples can be ready in 7-15 days once payment received.
4) Shipping port: Shanghai / Nanchang China.
5) Discounts: We offer good discount for large quantity.
1) Sea freight: We will update sea freight once we know your sea port where goods will be delivered.
2) Agent designated by client: Please tell us the contact detail of your shipping agent and we will arrange to deliver the items.
1) Your inquiry related to our products or price will be replied in 12 hours.
2) Well-trained and experienced staffs to answer all your inquiries in fluent English.
3) OEM & ODM, any your customized racking we can help you to design product.
4) We have very experienced professional engineers to make best solutions.
1) Payment: We can do O/A 40-60 days.
2) Lead time: Rush order we can support fast delivery.
3) Factory price: Factory direct sale competitive price.
4) Warranty: Two years warranty, the broken parts will be replaced and sent to you.
No, but good quantity comes with good price. We recommend the order quantity for regular products to fit at least one 20ft. container, which is about 15 tons.
For the production of necessary tooling requirement, we charge the cost before the first order for opening new mold, and the cost will be partially or fully refunded after certain quantity of orders.
