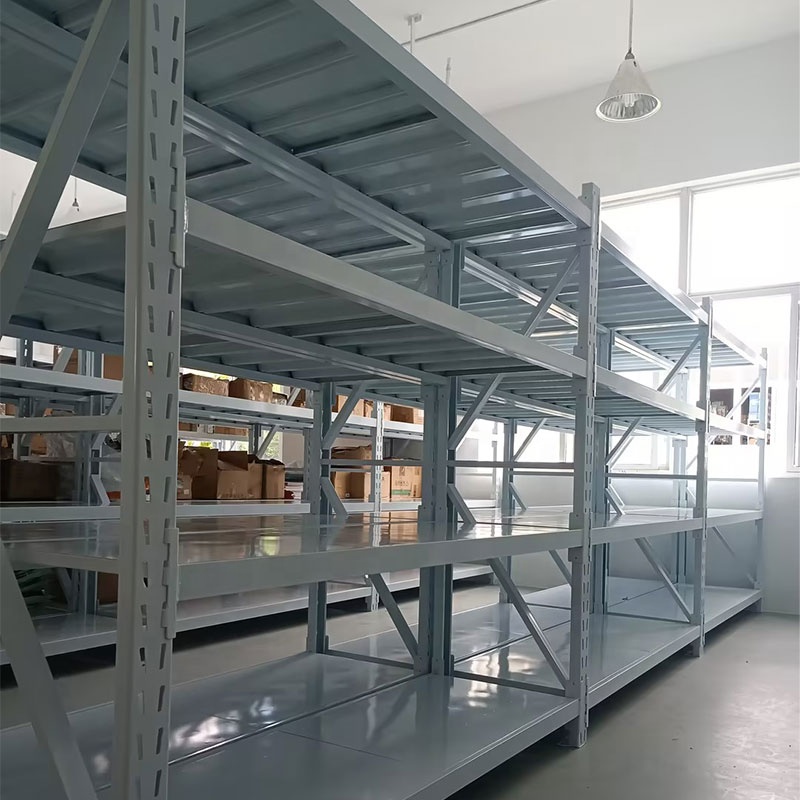

Shibang Storage Rack
1 / 5

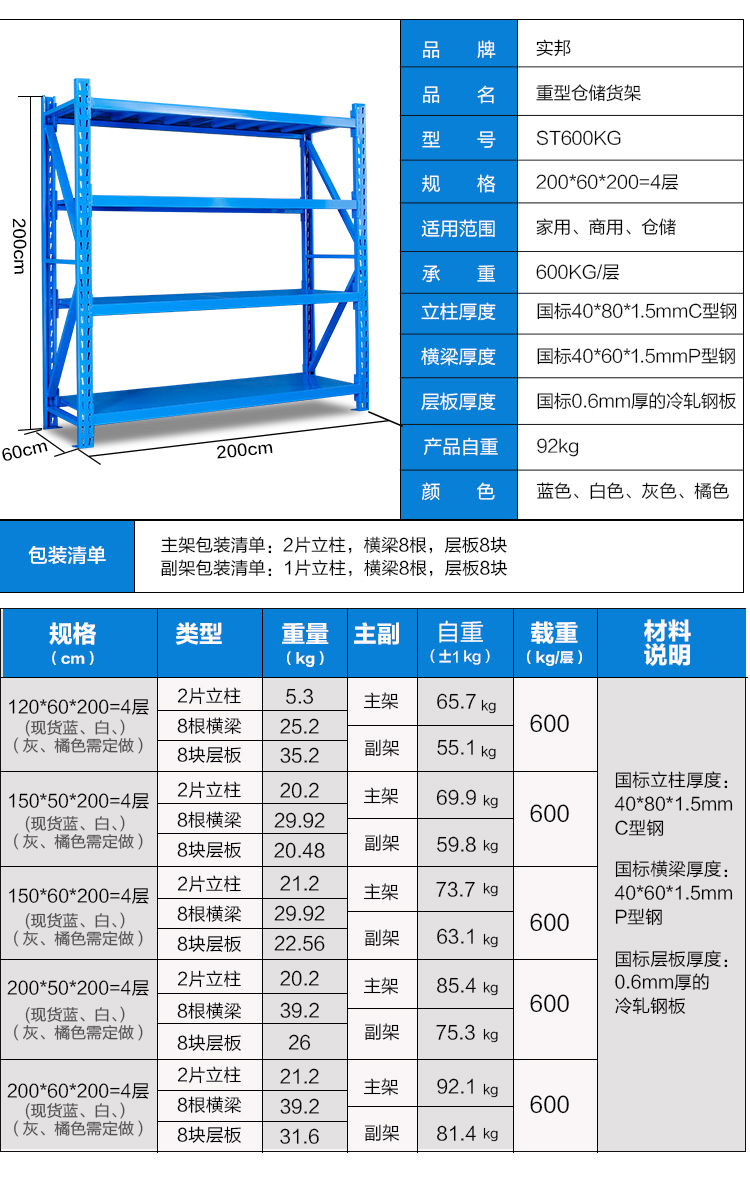

| Item | Configuration Details |
|---|---|
| Packing List |

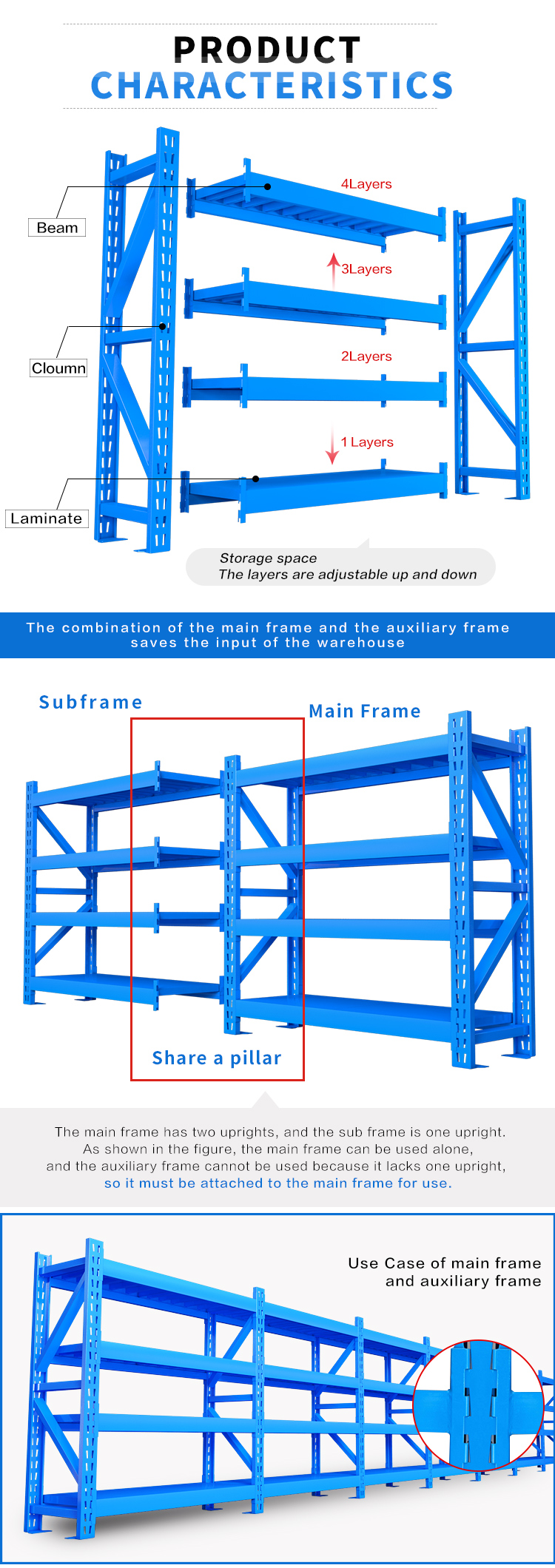

Body frame packing list: 2 Uprights + 8 Beams + 8 Shelves Sub frame packing list: 1 Upright + 8 Beams + 8 Shelves |
| Size (cm) | Style | Weight (kg) | Frame Type | Dead-weight (±1kg) | Loading capacity (kg/layer) |
|---|---|---|---|---|---|
| 120*60*200 = 4 layers (Spot blue, white; Gray, orange need customized) |
2 Uprights | 5.3 | Body-frame | 65.7 | 600 |
| 8 Beams | 25.2 | Sub-frame | 55.1 | ||
| 8 Shelves | 35.2 | - | - | ||
| 150*50*200 = 4 layers (Spot blue, white; Gray, orange need customized) |
2 Uprights | 20.2 | Body-frame | 69.9 | 600 |
| 8 Beams | 29.92 | Sub-frame | 59.8 | ||
| 8 Shelves | 20.48 | - | - | ||
| 150*60*200 = 4 layers (Spot blue, white; Gray, orange need customized) |
2 Uprights | 21.2 | Body-frame | 73.7 | 600 |
| 8 Beams | 29.92 | Sub-frame | 63.1 | ||
| 8 Shelves | 22.56 | - | - | ||
| 200*50*200 = 4 layers (Spot blue, white; Gray, orange need customized) |
2 Uprights | 20.2 | Body-frame | 85.4 | 600 |
| 8 Beams | 39.2 | Sub-frame | 75.3 | ||
| 8 Shelves | 26.0 | - | - | ||
| 200*60*200 = 4 layers (Spot blue, white; Gray, orange need customized) |
2 Uprights | 21.2 | Body-frame | 92.1 | 600 |
| 8 Beams | 39.2 | Sub-frame | 81.4 | ||
| 8 Shelves | 31.6 | - | - |
| Material Description | Specification Standards |
|---|---|
| Metal Materials |
• National standard upright thickness: 40*80*1.5mm C steel • National standard beam thickness: 40*60*1.5mm P steel • National standard shelf thickness: 0.6mm thick cold rolled steel sheet |
