OEM&ODM WELCOME

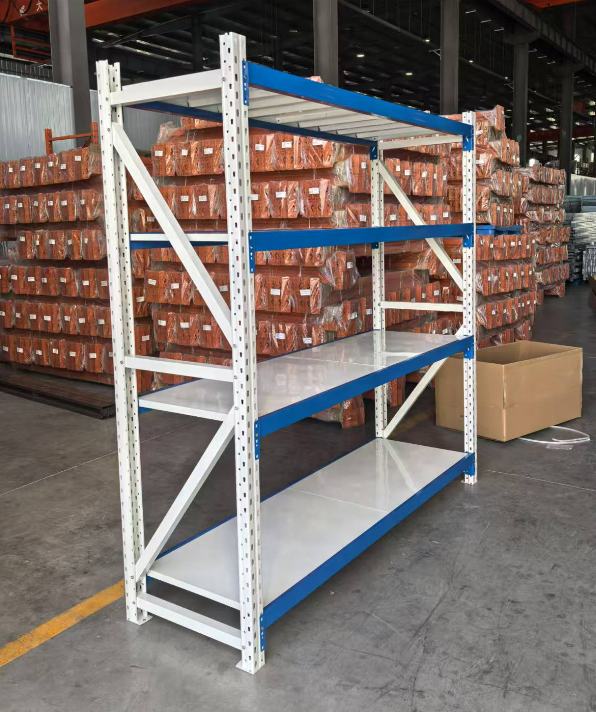

Product name: Light Duty Racking
Size: 200*60*200=4 layers (or custom)
Suit for: Warehouse Rack, Household, Commercial
Loading capacity: 180kg/layer
Upright thickness: 30*50*0.8mm C steel
Beam thickness: 30*50*0.8mm P steel
Shelf thickness: 0.4mm thick cold rolled steel sheet
Feature: Environmental protection spray, Corrosion Protection
Color: White
| Size (cm) | Body-frame weight (kg) | Sub-frame weight (kg) | Loading capacity (kg) |
|---|---|---|---|
| Thicken 150*50*200=4 layers | 33±0.5 | 28±0.5 | 180kg/layer |
| Thicken 150*60*200=4 layers | 37±0.5 | 32±0.5 | 180kg/layer |
| Thicken 200*50*200=4 layers | 41±0.5 | 37±0.5 | 180kg/layer |
| Thicken 200*60*200=4 layers | 44±0.5 | 40±0.5 | 180kg/layer |
Medium Duty Racking Specifications
| Product name | Medium Duty Racking | Loading capacity | 300kg/layer |
|---|---|---|---|
| Shelf thickness | 0.5mm thick cold rolled steel sheet | Color | White |
| Upright thickness | 40*80*1.0mm C steel | Material | Cold rolled steel |
| Beam thickness | 40*60*1.0mm P steel | Feature | Adjustable |
| Size (cm) | Body-frame weight (kg) | Sub-frame weight (kg) | Loading capacity (kg) |
|---|---|---|---|
| Thicken 150*50*200=4 layers | 41±0.5 | 35±0.5 | 300kg/layer |
| Thicken 150*60*200=4 layers | 45±0.5 | 38±0.5 | 300kg/layer |
| Thicken 200*50*200=4 layers | 50±0.5 | 43±0.5 | 300kg/layer |
| Thicken 200*60*200=4 layers | 55±0.5 | 48±0.5 | 300kg/layer |
| Material | Steel |
| Feature | Corrosion Protection, Esd Protection, Adjustable |
| Type | Boltless / Rivet Shelving |
| Length of layers | 200cm |
| Layer | 1-8 Layers Available |
| Surface Treatment | Powder coated |
| Installation | Industrial Shelving, Multi-tier Racking Systems |
| Usage | Garage, Warehouse, Commercial |
| Packing | Carton Packing |
| Certification | CE / ISO9001 |
| OEM&ODM | Acceptable |
